For facility managers and power generation professionals, few issues are as insidious or misunderstood as wet stacking. While often dismissed as a minor maintenance nuisance, wet stacking represents a significant reliability gap that is frequently the primary cause of a generator’s failure to start during critical outages. It is not merely a cosmetic issue involving dirty exhaust; it is a mechanical condition that fundamentally compromises the engine’s ability to perform when the grid goes down.

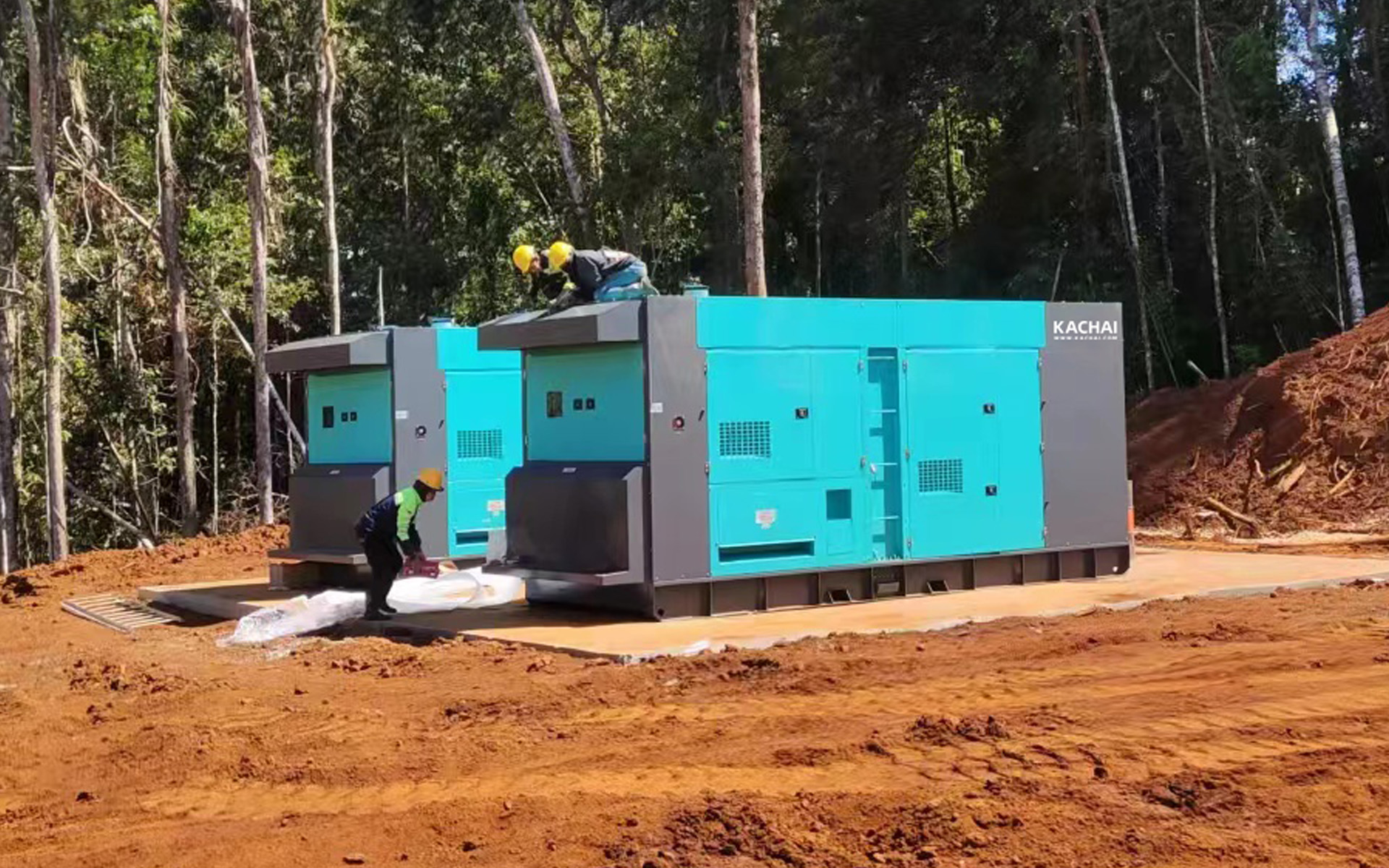

The root of this problem lies in the "oversizing paradox." Engineers and facility managers often procure oversized Diesel Generators to ensure ample safety margins for future expansion or starting currents. However, this practice directly contributes to wet stacking by forcing the engine to run under chronic light-load conditions. This guide explores the combustion physics behind the phenomenon, the specific financial and compliance risks associated with NFPA 110 regulations, and the operational frameworks required for effective prevention and remediation.
Key Takeaways
The 30% Threshold: Diesel generators operating below 30% of rated capacity are at high risk; ideal efficiency is found between 70–80% load.
Silent Failure Mode: In modern Tier 4 engines, wet stacking may not produce visible black smoke but will rapidly clog DPFs and void warranties.
Compliance Risk: Wet stacking compromises compliance with NFPA 110 regulations for Level 1 and Level 2 emergency power systems.
Remediation Economics: Prevention (correct sizing/load banking) offers significantly lower TCO than engine rebuilds or emergency rental remediation.
The Mechanics of Wet Stacking: Why It Happens
To understand why wet stacking occurs, one must look at the fundamental operation of a compression-ignition engine. Unlike gasoline engines which rely on spark plugs, diesel engines rely entirely on the heat generated by compressing air within the cylinder to ignite the fuel. The cylinder pressure—and consequently the internal temperature—is directly related to the load placed on the engine. When a generator runs under a light load, cylinder pressure remains low, and the internal heat is insufficient to completely vaporize and ignite the fuel injection.
Incomplete Combustion and Carbon Sludge
When the combustion chamber temperature falls below the optimal threshold (typically around 275°C or 525°F for exhaust gas), the fuel does not burn completely. Instead of turning into energy and harmless gas, the unburned fuel vaporizes and then condenses as it travels through the cooler parts of the exhaust system. This condensed fuel mixes with the hard carbon soot (particulates) naturally produced by combustion to form a thick, dark, oily substance. This carbonaceous sludge is what technicians refer to as "wet stacking." While it is often mistaken for a lubricating oil leak due to its viscosity and color, it is actually a mixture of raw diesel and carbon.
The Vicious Cycle of Deposits
Once wet stacking begins, it triggers a self-reinforcing cycle of degradation that accelerates engine wear. This is not a linear process but a compounding one:
Injector Fouling: Carbon deposits begin to form on the fuel injector tips.
Atomization Failure: The buildup distorts the precise spray pattern required for efficient burning. Instead of a fine mist, the fuel enters the cylinder in larger droplets.
Combustion Deterioration: Larger droplets burn even less efficiently, lowering cylinder temperatures further and creating even more deposits.
Deep Dive: Cylinder Glazing
The most severe mechanical consequence of prolonged wet stacking is cylinder glazing. In a healthy engine, cylinder walls have a cross-hatch pattern (honing marks) that retains a microscopic film of oil to lubricate the piston rings. When combustion is incomplete, the excess fuel washes this oil film away. Simultaneously, the hard carbon deposits on the piston rings act like fine sandpaper.
Over time, this polishes (glazes) the cylinder walls to a mirror-like finish. Without the cross-hatch texture, the rings cannot seal against the wall effectively. This leads to "blow-by," where hot combustion gases escape into the crankcase, and "oil dilution," where fuel enters the oil sump. Once glazing occurs, it is often irreversible without an engine rebuild, as the physical structure of the cylinder liner has been altered.
Recognizing the Symptoms: Tier 4 vs. Legacy Engines
Identifying wet stacking requires a keen eye, as the symptoms manifest differently depending on the age and technology of the generator. While the underlying mechanical failure is the same, the visual cues have changed significantly with the introduction of modern emissions standards.
The "Slobber" Phenomenon
In older engines, the classic symptom is known in the industry as "engine slobber." This appears as a black, oily ooze leaking from the exhaust manifold gaskets, turbocharger connections, or dripping from the exhaust stack itself. It is gritty, smells strongly of raw diesel, and is distinct from clean engine oil. Additionally, operators may notice auditory cues, such as the engine "missing" or idling roughly. This sound indicates that one or more cylinders are too cold to fire correctly, a condition that rapidly accelerates wear.
The "New Engine" Trap
For facility managers operating modern equipment, relying on visual cues like black smoke or dripping sludge can be disastrous. Modern Tier 4 engines are equipped with complex after-treatment systems designed to capture particulate matter. This masks the traditional symptoms of wet stacking, creating a "silent failure" mode.
| Feature | Legacy Engines (Tier 1-3) | Modern Engines (Tier 4 / Stage V) |
| Visual Indicator | Thick black smoke; oily "slobber" at exhaust joints. | No visible smoke or leaks. The exhaust looks clean. |
| Primary Failure Point | Cylinder glazing and valve sticking. | Diesel Particulate Filter (DPF) clogging. |
| Consequence | Loss of power, increased oil consumption. | Sudden shutdown ("Regen Required") or forced "Limp Mode" during outages. |
In Tier 4 engines, the wet stacking soot accumulates inside the Diesel Particulate Filter (DPF). Since the exhaust temperature is too low to trigger passive regeneration (burning off the soot), the filter clogs rapidly. During an emergency start, the engine management system may detect high backpressure and derate the engine or shut it down completely to protect the hardware, leaving the facility without power despite the engine appearing visually clean.
Operational Risks and Financial Consequences
The implications of wet stacking extend far beyond maintenance headaches. They impact the financial bottom line through reduced asset lifespan, increased regulatory liability, and potential warranty disputes.
Component Lifespan Reduction
Running Diesel Generators under light loads systematically destroys critical components. Turbochargers are particularly vulnerable; carbon buildup on the turbine blades disrupts aerodynamic balance, reducing boost efficiency and causing premature bearing failure. Valves are also at risk, as carbon accumulation on valve stems can cause them to stick. If a valve sticks open, the piston may strike it, causing catastrophic engine failure.
Furthermore, oil contamination poses a severe threat. When unburned fuel washes past the piston rings into the oil pan (oil dilution), it lowers the viscosity of the lubricating oil and introduces acidic byproducts. This compromised mixture corrodes bearings and crankshaft journals, necessitating major overhauls years before the expected service life is reached.
Regulatory & Compliance Exposure (NFPA 110)
For healthcare facilities, data centers, and life-safety applications, wet stacking is a compliance violation. The National Fire Protection Association (NFPA) Standard 110 sets strict protocols for testing Emergency Power Supply Systems (EPSS).
Under NFPA 110, monthly testing is mandatory. However, the standard is specific about load levels. If a generator cannot achieve 30% of its nameplate kW rating—or reach the manufacturer's recommended minimum exhaust gas temperature—during the monthly test, the facility is legally required to perform an annual load bank test. This test must run the unit at no less than 50% load for 30 minutes and 75% load for 60 minutes (totaling roughly 2 hours depending on specific interpretations). Failure to document these load levels puts the facility at risk of failing audits by the Joint Commission or local fire marshals.
Warranty Voiding
Perhaps the most immediate financial risk is the voiding of manufacturer warranties. Major engine manufacturers, including Caterpillar, Cummins, and Perkins, explicitly state that damage resulting from "improper operation"—which encompasses chronic under-loading—is not a manufacturing defect. Consequently, repair costs for glazed cylinders or clogged DPFs caused by wet stacking are often denied under warranty claims, leaving the facility owner to absorb the full cost.
Prevention and Mitigation Strategies
Preventing wet stacking is largely a matter of design choices and operational discipline. By addressing the root causes, facility managers can avoid the high costs of remediation.
Right-Sizing Equipment
The most effective prevention strategy occurs during the procurement phase. Accurate load profiling is essential. While it is tempting to oversize a generator to handle theoretical future loads, this often results in a unit that runs at 10-20% capacity for its entire service life. Engineers should size the generator so that the actual building load falls within the 50-80% efficiency "sweet spot" of the engine. If variable loads are expected, paralleling multiple smaller generators is often a superior strategy to installing a single massive unit.
Automatic Auxiliary Loading
For existing installations where the generator is already oversized, automatic auxiliary loading systems can mitigate risk. These control systems monitor the load on the generator. If the load drops below a set threshold (e.g., 30%), the system automatically engages "dummy loads" or non-critical facility loads—such as resistive heater banks or non-essential HVAC units—to artificially boost the demand. This forces the engine to work harder, raising cylinder temperatures to optimal levels.
The Role of Load Banks
When natural building loads are insufficient, load banks are the industry standard for maintaining engine health. A load bank is a device that develops an electrical load, applies it to an electrical power source, and converts the resulting power output of the source into heat.
Permanent vs. Portable: Facilities with critically oversized units should consider a permanent, radiator-mounted load bank. While the upfront cost is higher, it allows for automated weekly testing at full load without external vendors. Conversely, for units that are only slightly oversized, hiring a service provider to bring a portable load bank for annual testing is often more cost-effective.
ROI Calculation: When evaluating the cost of a permanent load bank, compare it against the cumulative cost of 10 years of rental testing plus the risk of a single engine rebuild. For mission-critical data centers, the ROI is often realized in under three years simply by eliminating the logistics of third-party testing.
Operational Discipline
Finally, establishing a strict "No Idle" policy is a zero-cost prevention method. Modern diesel engines do not need long warmup periods. Idling should be limited to 3-5 minutes for warmup and cooldown. Excessive idling is one of the fastest ways to induce wet stacking in an otherwise healthy engine.
Remediation: Safe Protocols for Cleaning Wet Stacking
If an engine already exhibits signs of wet stacking, immediate remediation is required to prevent permanent damage. The industry-standard solution is a process often called a "burn off."
The "Burn Off" Process
Remediation involves connecting the generator to a load bank and running it at increasingly high loads. The typical protocol involves running the unit at 75–100% of its nameplate rating for a period of 2 to 4 hours. This high load generates intense cylinder heat and high exhaust gas temperatures, which effectively vaporize the unburned fuel and burn off the carbon deposits from the injector tips and valves.
Safety Warning: Exhaust Fires
This process carries a significant safety risk that must not be ignored: exhaust fires. If a unit is heavily stacked, the exhaust system contains a massive amount of flammable carbon sludge. Rapidly heating the exhaust can cause this sludge to ignite, turning the exhaust stack into a chimney fire. Remediation should never be performed unattended. It requires professional monitoring with fire suppression equipment ready. Technicians often step up the load gradually to burn off deposits in controlled layers rather than all at once.
Verification
Once the burn-off is complete, the engine should be verified against baseline specifications. This includes performing a back-pressure test to ensure the exhaust system is clear and conducting an oil analysis. If the oil analysis shows high levels of fuel dilution or soot, the oil must be changed immediately to prevent bearing damage.
Conclusion
Wet stacking is rarely a defect of the diesel generator itself; rather, it is a symptom of operational mismanagement and improper sizing. The belief that running a generator gently extends its life is a dangerous misconception—diesel engines are designed to work hard, and they suffer when they don't. The cost of implementing a proper load management strategy or conducting an annual load bank test is a fraction of the cost of an engine rebuild or, worse, a failed startup during a critical blackout.
Facility managers are encouraged to review their monthly test logs immediately. If your data shows consistent operation below 30% load, your equipment is likely suffering from silent degradation. Taking proactive steps today ensures that when the lights go out, your power system performs exactly as intended.
FAQ
Q: Is wet stacking normal for a diesel generator?
A: No, wet stacking is not normal. It is a clear sign of improper loading, oversizing, or excessive idling. While it is a common issue in the industry due to poor sizing practices, it represents a failure to operate the engine within its design parameters. A healthy, correctly loaded diesel engine should not wet stack.
Q: What is the minimum load to prevent wet stacking?
A: The general industry standard is 30% of the nameplate rating. However, simply hitting 30% is the bare minimum to stay compliant. For optimal engine health and efficiency, operating between 60% and 75% load is preferred to ensure complete combustion and prevent carbon buildup.
Q: Can wet stacking fix itself?
A: No, wet stacking cannot fix itself. In fact, it will worsen if left alone. The deposits create a vicious cycle that leads to poorer combustion and more deposits. The only way to reverse the condition is through active remediation, such as a high-load bank test to burn off the accumulation.
Q: How do I tell if it's oil or wet stacking fluid leaking?
A: Wet stacking fluid (slobber) is distinct from engine oil. It is typically darker, grittier due to carbon content, and smells strongly of raw diesel fuel. Clean engine oil feels slicker and smells like oil. The definitive way to distinguish them is through a professional oil analysis or by inspecting the source of the leak (exhaust manifold vs. engine block).
